How FixedUpdate Works
Many Unity programmers misunderstand FixedUpdate
because it seems so basic. Usually it behaves in the simplistic way it’s thought to work, but there are important exceptions that are often forgotten. Today we’ll take a closer look at FixedUpdate
to get a better handle on how it works and learn to use it correctly.
Let’s start simple with Update
. This “message” function of our MonoBehaviour
classes is called every frame, no matter what. Consider this code:
class MyScript : MonoBehaviour { void Update() { Debug.Log("Update called on frame " + Time.frameCount); } }
Running the above code will produce an output like this:
Update called on frame 1 Update called on frame 2 Update called on frame 3 Update called on frame 4 Update called on frame 5
This is true regardless of how long each frame takes. A frame could take one millisecond or one hour and Update
would still be called once for that frame, the frame before, and the frame after.
Now let’s look at FixedUpdate
:
class MyScript : MonoBehaviour { void FixedUpdate() { Debug.Log("FixedUpdate called on frame " + Time.frameCount); } }
Running this version of the code might produce a log like this:
FixedUpdate called on frame 1 FixedUpdate called on frame 3 FixedUpdate called on frame 3 FixedUpdate called on frame 3 FixedUpdate called on frame 5
Without knowing more about the game, there’s no way to say for sure what the output would look like. Why? Because FixedUpdate
is much more complicated.

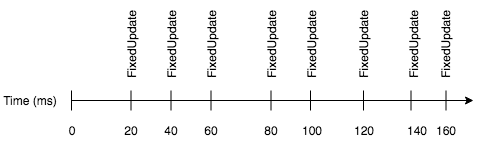

Let’s look at a diagram showing a super simple explanation for when FixedUpdate
would be called if we set it to 50 Hz in Edit > Project Settings > Time
:
In this diagram we see that FixedUpdate

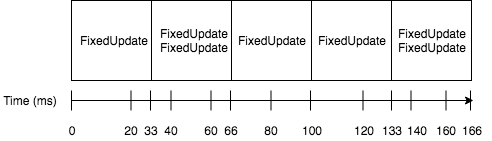

is called every 20 milliseconds, which lines up with 50 Hz. This explanation completely leaves out the concept of frames. When we add in frames, we immediately see that the even spacing can’t be maintained. Let’s look at the “normal” understanding of how a 50 Hz FixedUpdate
rate works with a 30 FPS game:
Notice how sometimes there are two FixedUpdate

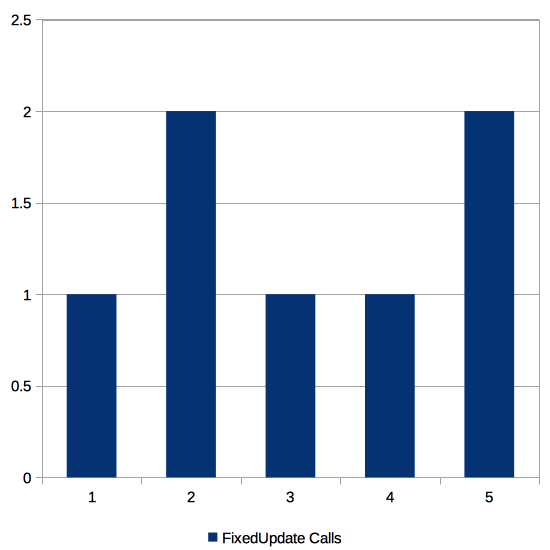

calls in a single frame and sometimes only one. The following graph shows how many calls occur per frame:
So even with this “normal” situation, the number of FixedUpdate
calls per second is only averaging out to the target 50 Hz. At the individual frame level, FixedUpdate
is being called at either 30 Hz or 60 Hz.
Now let’s look at what happens if the game were to run at 60 FPS but set the FixedUpdate
rate to 25 Hz (40 milliseconds):
Now we have the opposite issue as above. FixedUpdate
is supposed to be called less frequently than the FPS, meaning that not every frame will have a call to FixedUpdate
. As above, this averages out to the desired 24 Hz, but the calls are happening on ≅16.66 millisecond intervals rather than 40 millisecond intervals.
It’s important to note that in both of these situations we are not having our FixedUpdate
function called on a “tick-tock” basis. That is, we’re not necessarily seeing a 1, 2, 1, 2, 1, 2 pattern or a 0, 1, 0, 1, 0, 1 pattern. The call rate is much less regular than that and, as we’ll see below, can be even stranger.
Now let’s deviate a little more from the norm. Let’s say that our game is performing very poorly for some reason and we’re running at 5 FPS for a total of 200 milliseconds per frame. Then we set the desired FixedUpdate
rate to 100 Hz, which should mean calls every 10 milliseconds. Finally, we configure the maximum update interval for FixedUpdate
to 50 milliseconds in Edit > Project Settings > Time
. Here’s how this scenario would look:
In this case, notice how we’re not having our FixedUpdate
called at the desired 100 Hz. The maximum interval of 100 milliseconds is being hit half way through each 200 millisecond frame, limiting the number of FixedUpdate
calls to only 10 when it should have been called 20 times.
We can draw some conclusions with this expanded understanding of how FixedUpdate
works. First, Unity will indeed try to call FixedUpdate
at the desired rate. However, those calls need to fit within discrete frames. This means there may be zero, one, or more than one calls on any given frame as Unity dynamically adjusts to the actual frame rate. This also means that calls to FixedUpdate
are not necessarily on the specified interval.
One particularly nasty situation to be aware of occurs when the FixedUpdate
function itself is the cause of a frame rate slowdown. This will very likely result in Unity attempting to “catch up” with additional calls to FixedUpdate
so that the desired rate is averaged out. Those additional calls will further slow down the frame rate since FixedUpdate
is expensive in this scenario. The situation may compound until the maximum interval is hit. At this point the frame rate may have completely tanked.
Exactly what you should and shouldn’t use FixedUpdate
for is beyond the scope of this article, but this deeper understanding should help in making those per-game decisions.
#1 by Yaniv Shaked on July 11th, 2018 ·
Your articles are always a pleasure to read. Thank you!
1. Would love to hear what you have to say about “what you should and shouldn’t use FixedUpdate for”…
2. FixedUpdate (as well as Update) are both running from the main thread. This is the reason for FPS slowdown, when Unity is unable to “catch up” with FixedUpdate calls.
One possible solution for that, is to use the a worker thread from the thread pool (instead of FixedUpdate). That is possible, if the work you do in FixedUpdate for updating your game state (e.g. physics, etc..) is not using operations which must be running on the main thread.
Would love to hear your opinion on that approach.
Thanks,
Yaniv
#2 by nir on August 10th, 2021 ·
As a newer to Unity , the article is very helpful to me . Thank you!!
But some confusions makes me can’t understand the later part of this article explicitly ,which is :
******************************************************************************************************
“Finally, we configure the maximum update interval for FixedUpdate to 50 milliseconds in Edit > Project Settings > Time.”
“The maximum interval of 100 milliseconds is being hit half way through each 200 millisecond frame, limiting the number of FixedUpdate calls to only 10 when it should have been called 20 times.”
*****************************************************************************************************
1, What’s the meaning of ” The maximum interval of 100 milliseconds is being hit half way…” ???
2,what the difference between ” The maximum interval of 100 milliseconds” and “the maximum update interval for FixedUpdate to 50 milliseconds ” ? Is that wrong to regard the two concepts as equal ? which confuse me because their value are different , one is100 milliseconds and another one is 50 milliseconds .
3 , what the last diagram ‘s (10s)(20x) means ???
if i can get the 3 questions clear , I will make the fully understanding of this articles .
Thanks ,
nir .
#3 by jackson on August 29th, 2021 ·
I’m glad you found the article helpful!
1. The previous sentence says that we’re running at 5 FPS or 200 milliseconds per frame, so we hit the 100 millisecond interval half way.
2. There are two settings for
FixedUpdate
, which is what I’m describing here. You can also see a screenshot and description in Unity’s docs.3. This is a zoomed out view showing a lot of updates. 10x means “10 times.”
