Enumerables Without the Garbage: Part 1
In C#, just about everything is an IEnumerable
. Since LINQ syntax, foreach
loops, and the System.Linq
namespace are all designed to work with IEnumerable
, you’ve got lots of tools to use. Unfortunately, the core of IEnumerable
is the GetEnumerator
function which usually creates garbage and eventually causes memory fragmentation and GC framerate spikes. Do we simply stop using all of these nice tools? Normally the answer is “yes”, but today’s article shows you another way.
Today’s article is fundamentally about optimization. How do we optimize our code so that we don’t create any garbage while still having some tools to help us with the grunt work? It’s very handy to have tools like foreach
loops and the extension methods in the System.Linq
namespace, but they (almost always) end up creating garbage.
IEnumerable
is really just an interface to provide the GetEnumerator
function that gets you an IEnumerator
. With an enumerator you can get the Current
property, call MoveNext
to go to the next element, Reset
to move back to the start, and Dispose
when you’re done.
This sort of enumerator is very general and can be used for any sequence of values. This includes arrays and List
as well as other collection types (e.g. Dictionary
) and iterator functions (i.e. those with yield
). These all fit due to the generality of IEnumerable
, but this also comes with a lack of power. For example, there’s no MovePrev
function because you can’t go backwards in an iterator function.
The next tradeoff being made by IEnumerable
is right in its name: it’s an interface. The interface automatically means that each function is virtual
and can’t be implemented by a generic struct (i.e. MyStruct<T>
) without the struct needing to be allocated on the heap as garbage for the GC to later collect. On the plus side, the interface allows for polymorphism to reduce code duplication. For example, the extension methods in System.Linq
only needed to be implemented once and they work for any IEnumerable
.
So how can we do it differently? Since we’re looking to create zero garbage for the GC then we need to rule out classes and interfaces. The natural alternative is struct
which we can carefully arrange to never create any garbage. To avoid some confusion, let’s call our type an iterator rather than an enumerator. Here’s one for any kind of array:
public struct ArrayIterator<T> { public T[] Array; public int Index; }
Since this is a generic struct, we get to use it with arrays containing any type of elements. That’s crucial for code reuse, but unfortunately means that we can’t add any properties, methods, or non-default constructors. Instead, we can add some usability to this iterator type by adding extension methods onto it:
public static class ArrayIteratorExtensions { public static ArrayIterator<T> Begin<T>(this T[] array) { return new ArrayIterator<T> { Array = array }; } public static ArrayIterator<T> End<T>(this T[] array) { return new ArrayIterator<T> { Array = array, Index = array.Length }; } public static ArrayIterator<T> IteratorAt<T>(this T[] array, int index) { return new ArrayIterator<T> { Array = array, Index = index }; } public static T GetCurrent<T>(this ArrayIterator<T> it) { return it.Array[it.Index]; } public static ArrayIterator<T> GetNext<T>(this ArrayIterator<T> it) { it.Index++; return it; } public static ArrayIterator<T> GetPrev<T>(this ArrayIterator<T> it) { it.Index--; return it; } public static bool IsEqual<T>(this ArrayIterator<T> it, ArrayIterator<T> other) { return it.Array == other.Array && it.Index == other.Index; } public static bool NotEqual<T>(this ArrayIterator<T> it, ArrayIterator<T> other) { return it.Array != other.Array || it.Index != other.Index; } }
This is just a basic set, but already we have enough to perform common tasks such as looping. Here’s how that’d look:
int FindMax(int[] array) { var max = int.MinValue; for ( // Get iterators for the beginning and end // Note: end is one past the last element ArrayIterator<int> it = array.Begin(), end = array.End(); // Loop until the current iterator equals the end iterator it.NotEqual(end); // Move the current iterator forward it = it.GetNext() ) { // Get the current iterator's current value var cur = it.GetCurrent(); if (cur > max) { max = cur; } } return max; }
Since using List
and other list collections (e.g. LinkedList
) is extremely common, let’s define a parallel set of iterator code for IList
:
public struct ListIterator<T> { public IList<T> List; public int Index; } public static class ListIteratorExtensions { public static ListIterator<T> Begin<T>(this IList<T> List) { return new ListIterator<T> { List = List }; } public static ListIterator<T> End<T>(this IList<T> List) { return new ListIterator<T> { List = List, Index = List.Count }; } public static ListIterator<T> IteratorAt<T>(this IList<T> List, int index) { return new ListIterator<T> { List = List, Index = index }; } public static T GetCurrent<T>(this ListIterator<T> it) { return it.List[it.Index]; } public static ListIterator<T> GetNext<T>(this ListIterator<T> it) { it.Index++; return it; } public static ListIterator<T> GetPrev<T>(this ListIterator<T> it) { it.Index--; return it; } public static bool IsEqual<T>(this ListIterator<T> it, ListIterator<T> other) { return it.List == other.List && it.Index == other.Index; } public static bool NotEqual<T>(this ListIterator<T> it, ListIterator<T> other) { return it.List != other.List || it.Index != other.Index; } }
Looping looks almost exactly the same with these:
int FindMax(IList<int> list) { var max = int.MinValue; for ( ListIterator<int> it = list.Begin(), end = list.End(); it.NotEqual(end); it = it.GetNext() ) { var cur = it.GetCurrent(); if (cur > max) { max = cur; } } return max; }
Again, this is just a very basic set of iterator functions but it does provide a foundation to build on. For a glimpse of what can be built, see the documentation for the algorithm
header in C++.
Finally, let’s look at the performance of these basic loops against for
, while
, and foreach
with arrays and List
. I’ve simply added on an iterator-based loop to the tests from this recent article to come up with this little test script:
using System; using System.Collections.Generic; using UnityEngine; public class TestScript : MonoBehaviour { private const int NumIterations = 100000; private class Counter { public int Value; } private string report; void Start() { report = string.Join( ",", new[]{ "Size", "Array For", "Array While", "Array Foreach", "Array Iterator", "List For", "List While", "List Foreach", "List Iterator" } ) + "\n"; var sizes = new []{ 10,100,1000 }; foreach (var size in sizes) { report += Test(size); } } private string Test(int size) { var stopwatch = new System.Diagnostics.Stopwatch(); var sum = 0; var array = new Counter[size]; for (int i = 0; i < size; ++i) { array[i] = new Counter() { Value = i }; } stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { for (int i = 0, len = array.Length; i < len; ++i) { sum += array[i].Value; } } var arrayForTime = stopwatch.ElapsedMilliseconds; stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { var i = 0; var len = array.Length; while (i < len) { sum += array[i].Value; ++i; } } var arrayWhileTime = stopwatch.ElapsedMilliseconds; stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { foreach (var cur in array) { sum += cur.Value; } } var arrayForeachTime = stopwatch.ElapsedMilliseconds; stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { for ( ArrayIterator<Counter> it = array.Begin(), end = array.End(); it.NotEqual(end); it = it.GetNext() ) { sum += it.GetCurrent().Value; } } var arrayIteratorTime = stopwatch.ElapsedMilliseconds; var list = new List<Counter>(size); list.AddRange(array); stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { for (int i = 0, len = list.Count; i < len; ++i) { sum += list[i].Value; } } var listForTime = stopwatch.ElapsedMilliseconds; stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { var i = 0; var len = list.Count; while (i < len) { sum += list[i].Value; ++i; } } var listWhileTime = stopwatch.ElapsedMilliseconds; stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { foreach (var cur in list) { sum += cur.Value; } } var listForeachTime = stopwatch.ElapsedMilliseconds; stopwatch.Reset(); stopwatch.Start(); for (var iteration = 0; iteration < NumIterations; ++iteration) { for ( ListIterator<Counter> it = list.Begin(), end = list.End(); it.NotEqual(end); it = it.GetNext() ) { sum += it.GetCurrent().Value; } } var listIteratorTime = stopwatch.ElapsedMilliseconds; return size + "," + arrayForTime + "," + arrayWhileTime + "," + arrayForeachTime + "," + arrayIteratorTime + "," + listForTime + "," + listWhileTime + "," + listForeachTime + "," + listIteratorTime + "\n"; } void OnGUI() { GUI.TextArea(new Rect(0, 0, Screen.width, Screen.height), report); } }
If you want to try out the test yourself, simply paste the above code into a TestScript.cs
file in your Unity project’s Assets
directory and attach it to the main camera game object in a new, empty project. Then build in non-development mode for 64-bit processors and run it windowed at 640×480 with fastest graphics. I ran it that way on this machine:
- 2.3 Ghz Intel Core i7-3615QM
- Mac OS X 10.11.5
- Unity 5.3.4f1, Mac OS X Standalone, x86_64, non-development
- 640×480, Fastest, Windowed

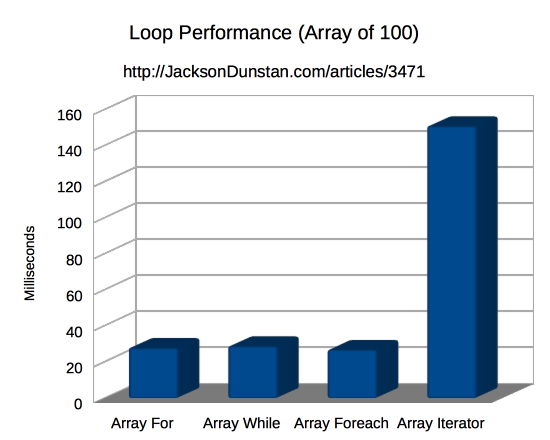

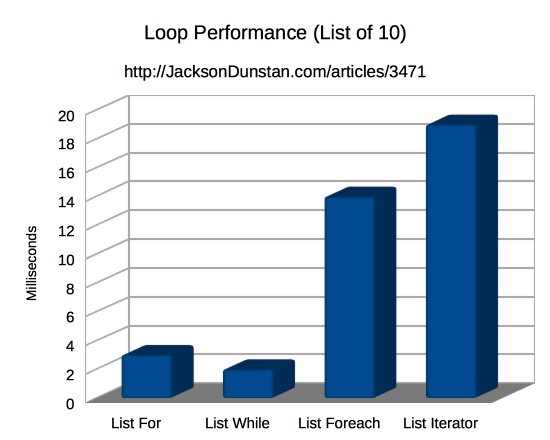

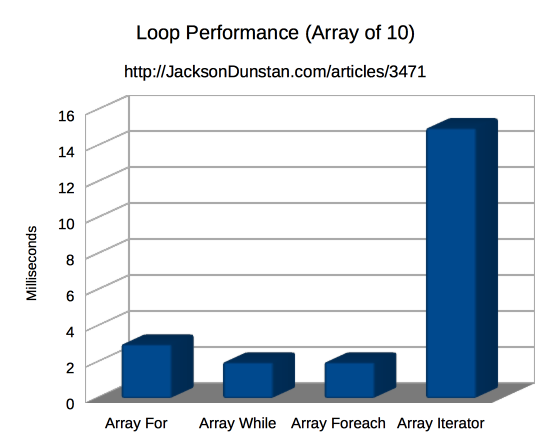

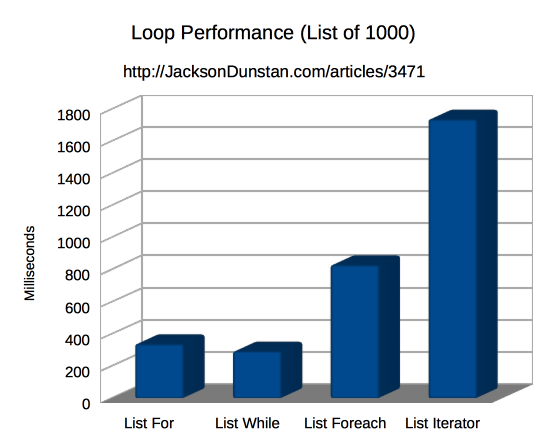

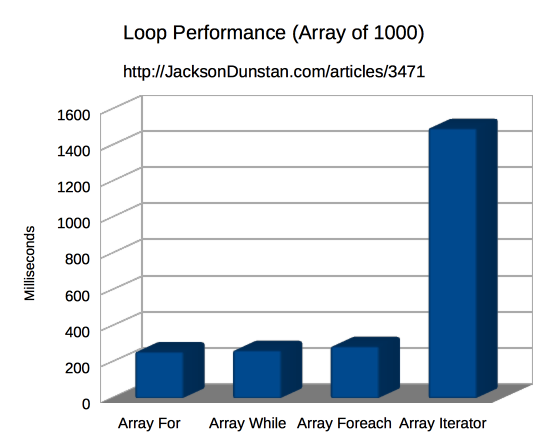

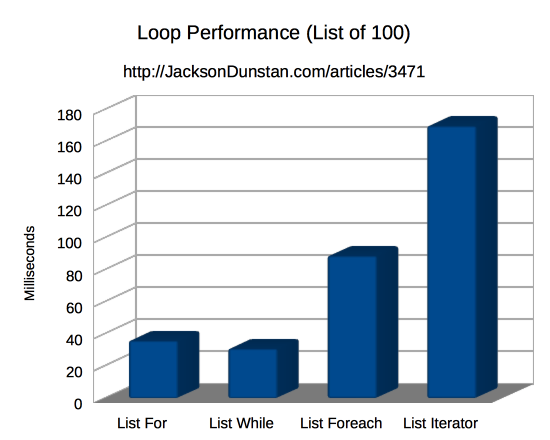

And here are the results I got:
Size | Array For | Array While | Array Foreach | Array Iterator | List For | List While | List Foreach | List Iterator |
---|---|---|---|---|---|---|---|---|
10 | 3 | 2 | 2 | 15 | 3 | 2 | 14 | 19 |
100 | 28 | 29 | 27 | 151 | 36 | 31 | 89 | 170 |
1000 | 259 | 267 | 289 | 1497 | 339 | 294 | 831 | 1739 |
The performance of the iterator-based loops is clearly worse than any alternative. This is especially true in the case of arrays where the performance penalty is roughly 7x. With List
, however, the penalty is about the same compared to for
and while
but only about 2x slower than foreach
.
So is this iterator-based looping unusably slow? Not necessarily. There are two very important factors to keep in mind while interpreting these results. First, remember that all types of these loops were executed in very little time. Each array or list was iterated over 100,000 times to get a big enough number to show up in the results. Even with the slowest type (List
) the iterator-based loop was performing over 50,000 iterations per millisecond! Even this is artificially high since it counts the work to add to the sum
variable and the overhead of the outer loop. In reality you’d get even more iterations per second.
The second important factor to keep in mind is that the iterator-based loops didn’t create any garbage. The foreach
loop on the List
created almost 4 MB! (40 bytes * 100,000 loops) The performance penalty for all this garbage creation isn’t paid up front when the garbage is created but later on down the line after the test has been completed and the GC needs to collect it all. If you add that cost onto foreach
for List
then it will likely be much slower than the iterator-based loop and much more unpredictable and uncontrollable since the GC runs whenever Unity decides it should.
That’s all for part one of this series. In future articles I’ll be adding on to the basic set of iterator extension functions to create a useful little library. It should serve as an alternative to IEnumerable
for those of us concerned with garbage creation. Stay tuned!
UPDATE: check out part two
